A coupler that almost fits is worse than one that clearly does not. A ball that sits a fraction small in the socket will still latch, still look closed, and still tow down the driveway, which is exactly why mismatched coupler and ball combinations keep showing up in ramp parking lots. The problem only announces itself over a bump at speed.
This guide covers what a 2 inch trailer coupler actually is, where the numbers that matter are stamped, how bolt-on and weld-on styles differ, and how to buy a replacement that matches both your tongue and your tow vehicle’s ball mount. It is a fitment question with a short answer and a few details that are easy to skip.
This article contains affiliate links. If you buy through them, we may earn a commission at no extra cost to you. Learn more.
Quick Answer
How do you match a 2 inch trailer coupler to your ball?
- A 2 inch coupler fits a 2 inch hitch ball and nothing else. Ball diameter and coupler size are a matched pair, not a range.
- The size is stamped or cast into the coupler body, usually on the latch or the top of the socket. Read it rather than measuring a worn socket.
- Capacity is a separate number from size. Fulton stamps a rated capacity on its couplers, and that rating has to cover your loaded trailer weight.
- Tongue style decides the rest: A-frame couplers bolt or weld to the point of a triangular tongue, straight tongue couplers slide over a square channel.
Bottom line: match ball diameter exactly, check the stamped capacity, then pick the mounting style your tongue already uses.
What the 2 Inch Actually Refers To
The 2 inch in a 2 inch coupler is the diameter of the hitch ball the socket is machined to accept. It is not the tongue width, not the channel size and not a capacity class. Couplers are sold in a small set of matched ball diameters, and each one accepts only its own size, because the socket geometry is what lets the latch close around the ball.
That is also why swapping a ball is a real job rather than a guess. If your trailer has a 2 inch coupler, the tow vehicle needs a 2 inch ball on the ball mount, with a shank and nut sized for the mount’s hole.
Why a Slightly Small Ball Is Dangerous
A ball one size under still drops into the socket and the latch will often close over it. Under load the ball can rotate and lift within the oversized socket, and a bump at highway speed is enough to let it come free. The safety chains are the only thing left at that point, which is exactly the situation they exist for and not a situation you want to test.
Reading the Stamp on Your Coupler
Almost every coupler carries its own spec on the casting. Look on the top of the socket, on the side of the body, or on the latch handle for the ball diameter and a capacity figure. Manufacturers such as Fulton stamp both, so the coupler tells you what it is without a tape measure and without guessing from a worn socket.
Measuring an old socket is unreliable because wear opens it up. A coupler that has towed for years measures larger than it was built, which can talk you into buying the wrong replacement. Trust the stamp, and if the stamp is unreadable, match to the ball currently on the tow vehicle only after confirming that combination was correct in the first place.
Capacity Is the Second Number
Coupler capacity and ball diameter are independent. A 2 inch coupler can be rated at different capacities depending on construction, and Fulton publishes a capacity for each model in its coupler range. The replacement needs a rating that covers the trailer plus the boat, motor, fuel and gear as it actually rolls, not the bare hull weight from a brochure.
Bolt-On or Weld-On
Bolt-on couplers attach through existing holes in the tongue with grade-rated hardware, which makes them the practical choice for most owners replacing a worn unit at home. Weld-on couplers are fixed permanently to the tongue and are typically found on factory trailers or on rigs where a fabricator has already been involved.
If your current coupler is bolted, buy bolted. Drilling new holes in a tongue changes the load path in ways that belong with someone who does structural welding for a living, and the same is true in reverse for cutting a welded coupler off.
A-Frame Versus Straight Tongue
An A-frame coupler sits at the apex of a triangular tongue and bolts or welds across both legs. A straight tongue coupler slides onto the end of a square channel and clamps or bolts through it, sized by the channel dimension rather than by the frame shape. Look at your tongue before you shop, because the two are not interchangeable.
Couplers and Matching Parts by Situation
Replacing an A-Frame Coupler on a Boat Trailer
Most trailerable boat rigs use an A-frame tongue with a bolt-on coupler at the point. A direct replacement in the same ball size and at or above the original capacity is the straightforward path, and the bolt pattern usually lines up with the existing holes on a same-brand swap.
Trailers With a Square Channel Tongue
Smaller jon boat and utility trailers often run a straight square tongue instead of an A-frame. These take a channel-style coupler sized to the tube, so the channel dimension has to match as precisely as the ball diameter does.

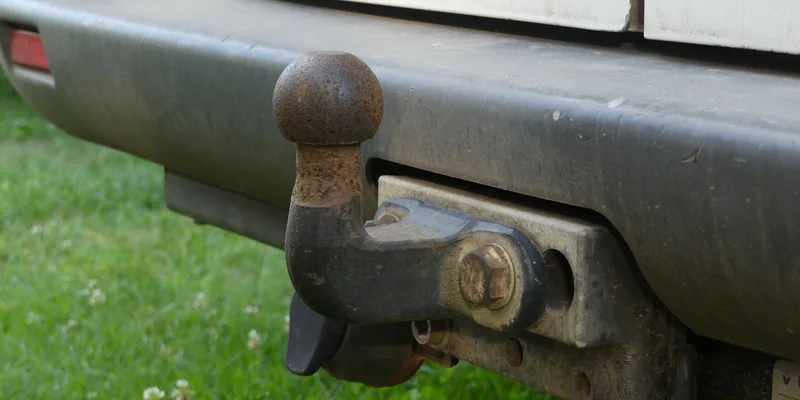

The Ball on the Tow Vehicle Side
A new coupler is only half of the pair. The ball has to be the same diameter, with a shank that fits the hole in your ball mount and a rated capacity that covers the load. Replacing both at once removes any doubt about whether an older ball is worn or was ever the right size.
Keeping the Trailer Where You Parked It
A coupler lock fills the socket or clamps the latch closed so the trailer cannot simply be lifted onto someone else’s ball. Locks are sold by coupler size, so a 2 inch coupler needs a lock built for that socket rather than a universal claim.
Coupler Types Compared
| Coupler type | Mounts to | Attachment | Best suited to |
|---|---|---|---|
| A-frame bolt-on | Point of a triangular tongue | Bolts through existing holes | Most boat trailers, home replacement |
| A-frame weld-on | Point of a triangular tongue | Welded, permanent | Factory rigs and shop rebuilds |
| Straight tongue channel | Square tube tongue end | Bolts through the channel | Jon boat and small utility trailers |
| Adjustable channel mount | Square tube tongue end | Bolts, height adjustable | Matching an odd ball mount height |
Latch Styles and What They Change
Couplers close in a few different ways. A lever latch flips over the ball and is the most common style on boat trailers. A screw or wheel-style latch tightens down onto the ball and holds tension. Both work, and both need a pin or padlock through the latch so vibration cannot lift it.
Whichever style you have, the latch should close with light hand pressure and then resist lifting. If it needs to be forced, or if it closes with obvious slack, the socket or latch is worn and the coupler is due for replacement rather than adjustment.
The Safety Pin Is Not Optional
Every coupler has a hole for a pin or lock through the closed latch. It costs nothing, takes a second, and is the only thing preventing a latch from walking open on a rough road. Owners who have hitched in a hurry and forgotten it are the same owners who now keep a spare pin in the tow vehicle.
Common Mistakes When Replacing a Coupler
Buying by capacity and assuming the ball size will work out is the mistake that causes the most returns. The reverse happens too: owners match the ball diameter perfectly and end up with a coupler rated below the loaded trailer weight, which is a paperwork problem and a safety one.
The other frequent miss is ordering an A-frame coupler for a square tongue, or a channel coupler for an A-frame. Take a photo of the tongue before you shop and compare it against the product images rather than the product title.
Frequently Asked Questions
Can a 2 inch coupler fit on a smaller ball? No. It may drop on and the latch may close, but the ball can lift and rotate inside the oversized socket and separate under load. Ball diameter and coupler size have to be identical.
Where is the size marked on a trailer coupler? Stamped or cast into the coupler body, typically on the top of the socket or on the latch. Manufacturers including Fulton stamp both the ball diameter and a rated capacity there.
Do I need to replace the ball when I replace the coupler? Not always, but it is the simplest way to be certain the pair matches. An old ball can be worn or may never have been the correct size for the coupler that was on the trailer.
Is a bolt-on coupler as strong as a weld-on? A bolt-on coupler installed with the correct grade-rated hardware and torqued properly is a normal production method, not a compromise. The failure mode to avoid is reusing tired hardware or drilling holes that were not there.
What if my coupler latch is loose but the trailer is otherwise fine? A socket that no longer grips is worn out. Some couplers have an adjustable latch that can take up a small amount of play, but persistent slack means replacement rather than adjustment.
Does the coupler size affect what tow vehicle I need? No. Coupler size is about the ball, while what your vehicle can pull comes from its manufacturer’s towing specifications. Check those separately in the owner’s manual.
The Bottom Line
A 2 inch trailer coupler is a matched pair with a 2 inch ball, and everything else about the purchase follows from the stamp on the casting and the shape of your tongue. Read the size and capacity from the coupler itself, buy the mounting style that already exists on the trailer, and pin the latch every single time. If reversing down the ramp is the part you dread more than the hardware, our guide to backing a boat trailer covers the technique, and our tie down strap guide covers what holds the boat once the coupler is latched.
